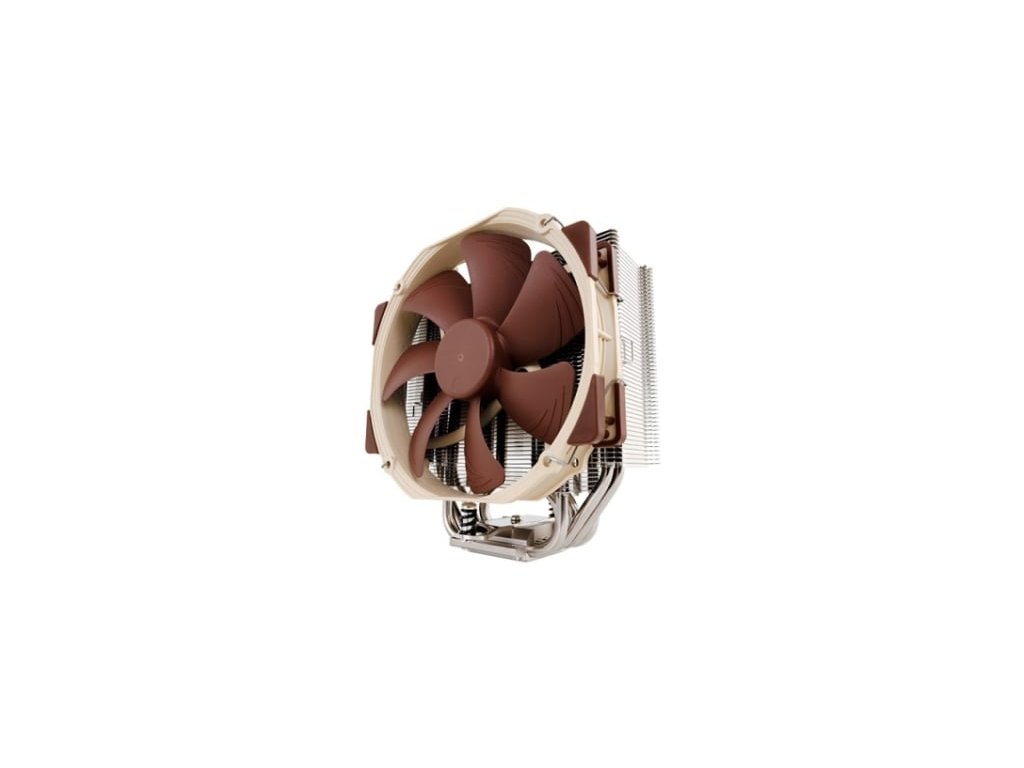

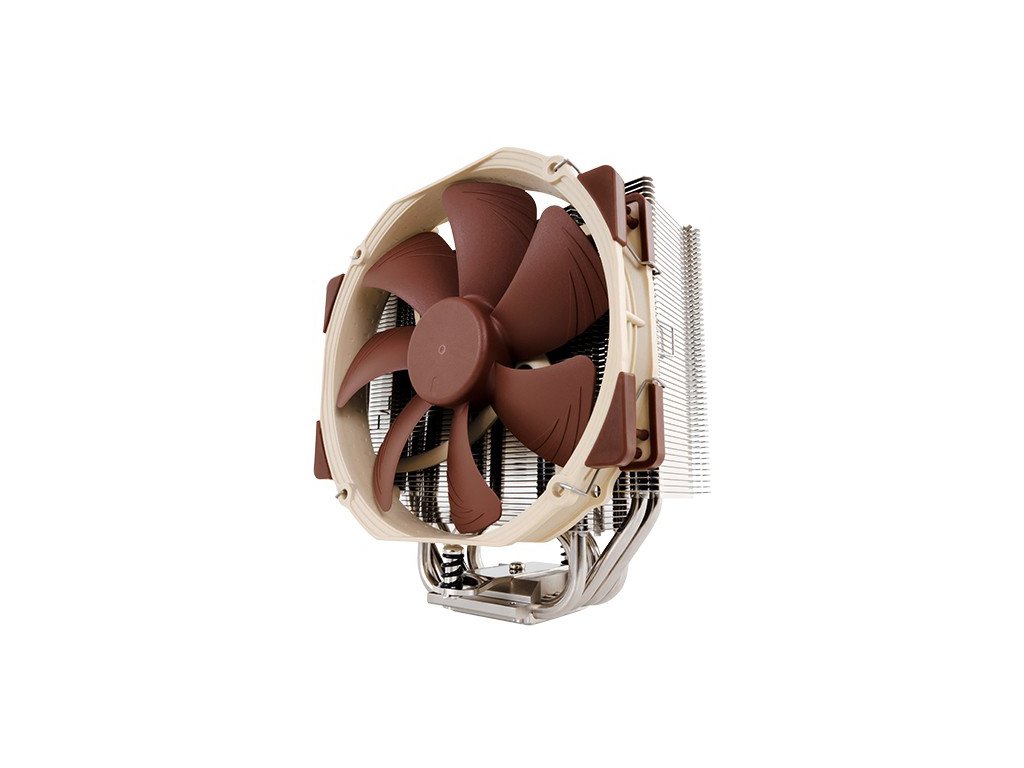

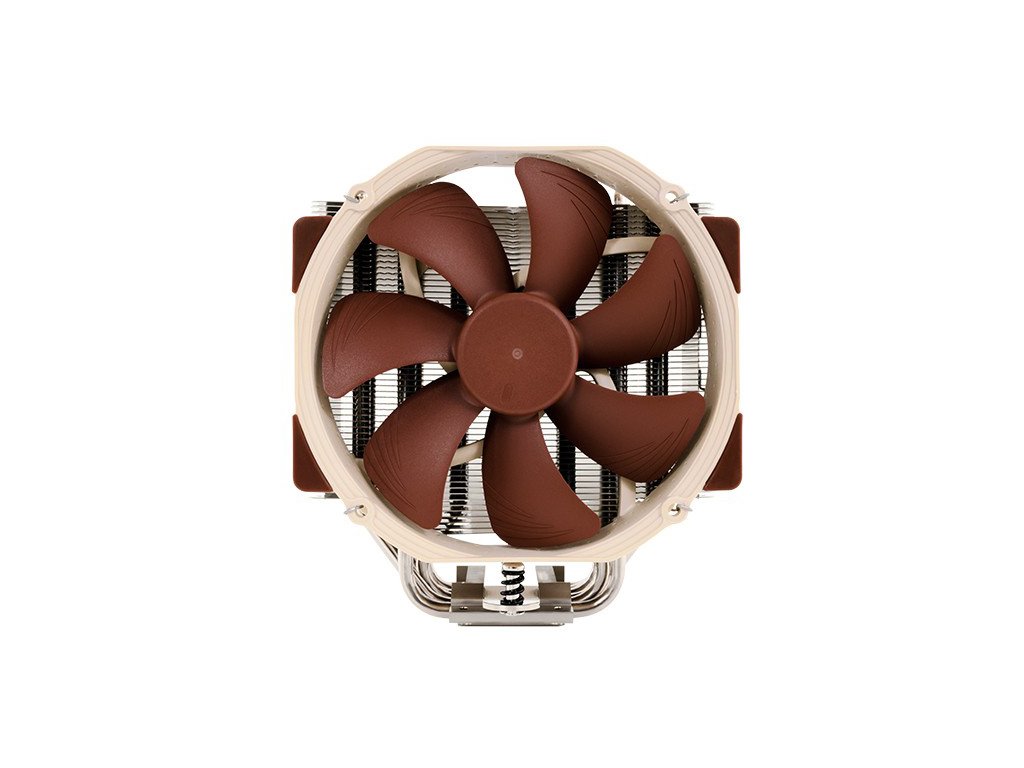

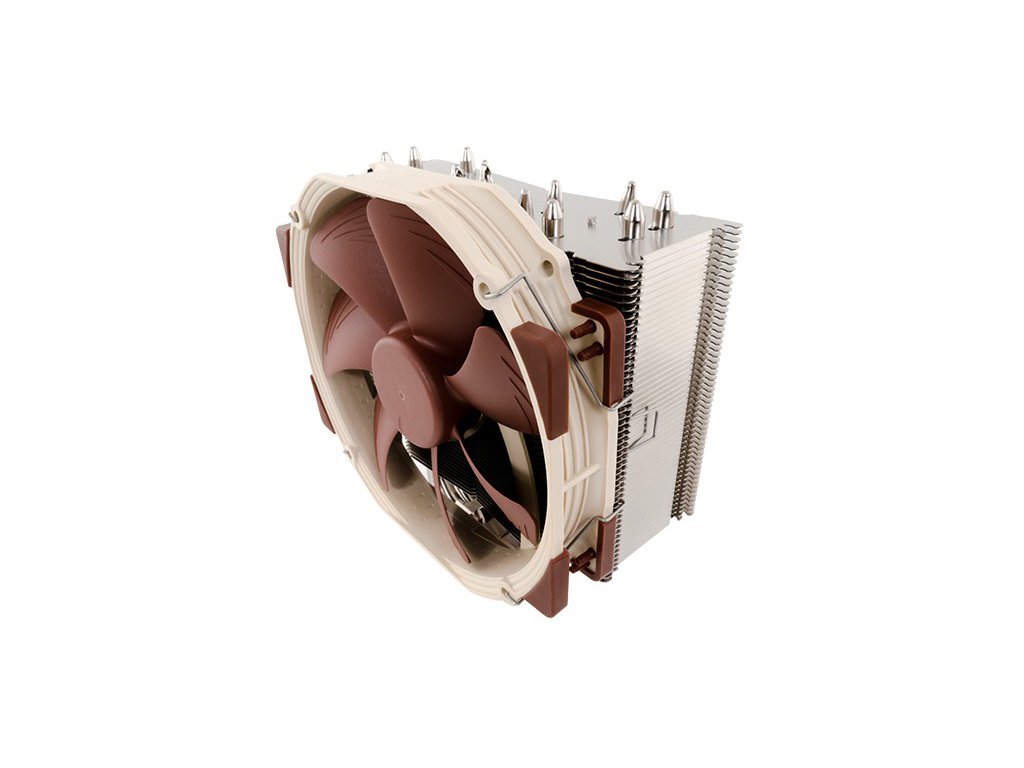

Noctua NH-U14S

NH-U14S • Rozměry: výška 165 mm, bez ventilátoru váží 770 g (935 g včetně) • Pasivem probíhá šestice heatpipe, dosahuje i s ventilátorem NF A-15 šířky 78 mm, což by mělo zaručovat 100% kompatibilitu i s vysokými pamětmi. • Maximální otáčky ventilátoru dosahují 1500 ot./min., při použití dodávaného L.N.A. klesnou trvale na 1200 ot./min. a PWM regulace je dokáže snížit dle potřeby až na 300 ot./min. • Při maximálních otáčkách by hlučnost neměla přesáhnout 24,6 dB(A) a s L.N.A. by se měla pohybovat těsně pod hranicí 19,2 dB(A). • Životnost je 150 000 hodin MTBF. • Obsah balení: L.N.A., teplovodivá pasta NT-H1 a úchytný systém SecuFirm2. The NH-U14S is the 14cm top model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. While the large, six heatpipe design and the NF-A15 140mm fan with PWM support for fully automatic speed control allow the cooler to best the renowned quiet cooling performance of all other U-series coolers, its 52mm slim shape still guarantees full compatibility with tall RAM modules on LGA2011. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-U14S is a complete premium quality solution that combines superb performance, high compatibility and quiet operation. Socket compatibility Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM4, AM5 Height (without fan) 165 mm Width (without fan) 150 mm Depth (without fan) 52 mm Height (with fan) 165 mm Width (with fan) 150 mm Depth (with fan) 78 mm Weight (without fan) 770 g Weight (with fan) 935 g Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 Scope of Delivery NF-A15 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kit Anti-vibration pads and fan-clips for second NF-A15 (optional) Noctua Metal Case-Badge Warranty 6 Years Fan specifications Model Noctua NF-A15 PWM Bearing SSO2 Max. Rotational Speed (+/- 10%) 1500 RPM Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM Min. Rotational Speed (PWM) 300 RPM Max. Airflow 140,2 m3/h Max. Airflow with L.N.A. 115,5 m3/h Max. Acoustical Noise 24,6 dB(A) Max. Acoustical Noise with L.N.A. 19,2 dB(A) Input Power 1,56 W Voltage Range 12 V MTBF > 150.000 h h
