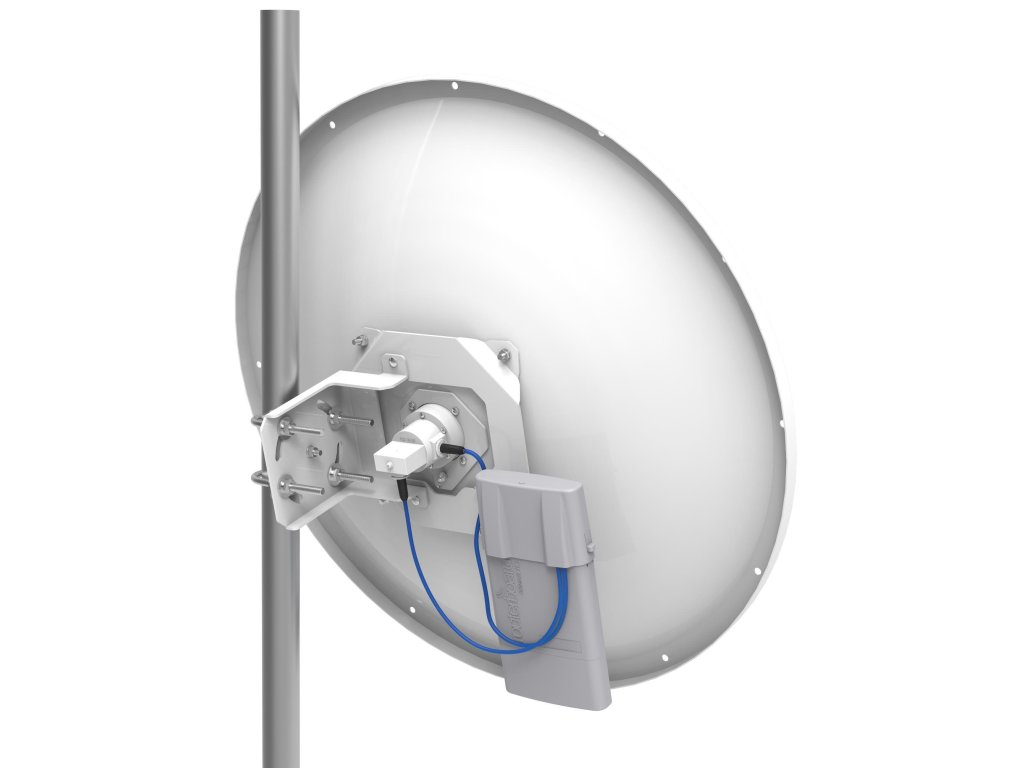

MikroTik mANT30, 5GHz 30dBi antenna

OVERVIEW mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. SPECIFICATIONS Product code *MTAD-5G-30D3 Antenna gain DBI *30dbi Frequency Range *4.7-5.875 GHz Polarization *Vertical and Horizontal Beamwidth *3 deg VSWR *? 1.4 typ, ? 1.8 max Port to Port Isolation *>40dB min Front-to-Back Ratio *>30 dB Cross Polarization *>40 dB Power Rating *100W Impedance *50 ohms Elevation adjustment range *+/- 20 deg Diameter x Depth *70 x 45cm (27.5 x 17.8in) Weight *4.8kg (10.7 lbs) Reflector *Aluminum Outdoor Rating *ETSI EN 300 019-2-4 Standards *EN 302 326 DN1, DN2, DN3, DN5 Wind Survivability *201kph (125mph) Wind Load (125 mph) *181.4kg (400 lbs) Operating Temperature *-50°C to 80°C(-49°F to 158°F) Pole Mount Diameter Range *3 to 7cm (1.2 to 2.75in) Connector *2x RP-SMA Female (outside thread) Packaged size *73x73x20cm (29x29x8in) Packaged weight *7.5 kg (16.5 lbs)
