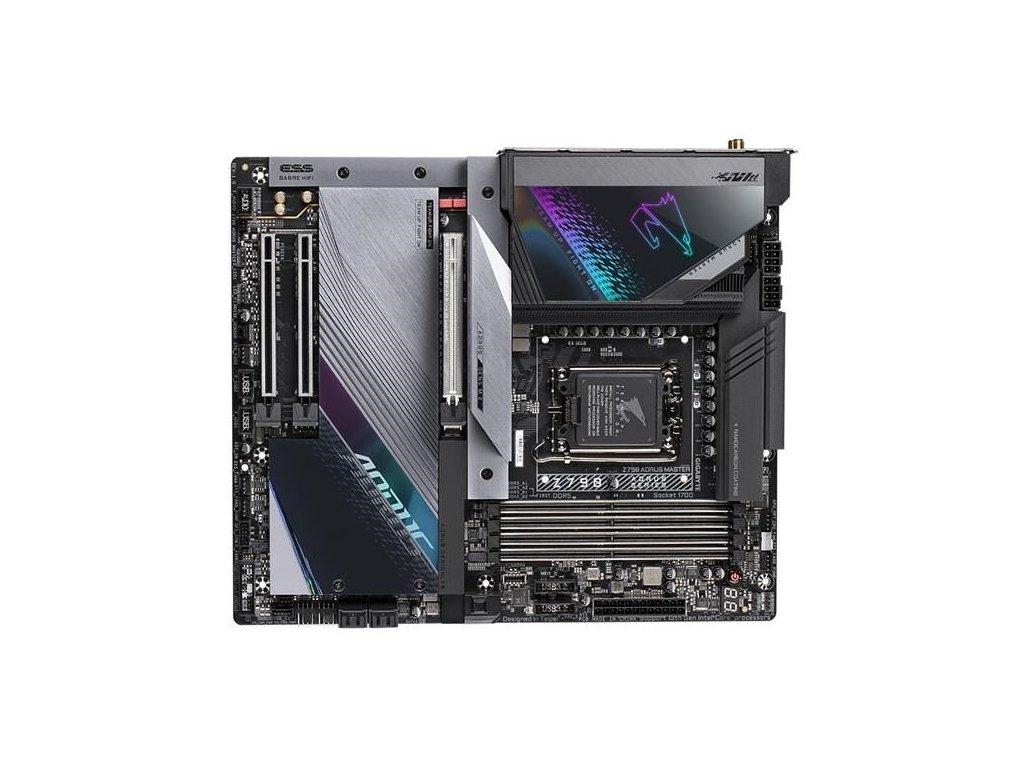

GIGABYTE Z790 AORUS MASTER

Chipset: Intel Z790 Express Chipset Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.0cm) Podpora pro procesory: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 4 x DDR5 DIMM sockets, Dual channel memory architecture Podpora pro paměti: DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: ECC, non-ECC, XMP Grafická karta: (Intel HD Graphics) 1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60 Hz Zvuková karta: Realtek ALC1220-VB CODEC 2/4/5.1-channel Podpora S/PDIF Out Síťová karta: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Intel Killer Wi-Fi 6E AX1690 a, b, g, n, ac, ax Bluetooth 5.3 Rozšiřující sloty: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) RAID řadič: RAID 0, RAID 1, RAID5, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 5 x M.2 Socket 3 connectors USB: Interní: 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers Externí: 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports Interní porty: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Externí porty: 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
