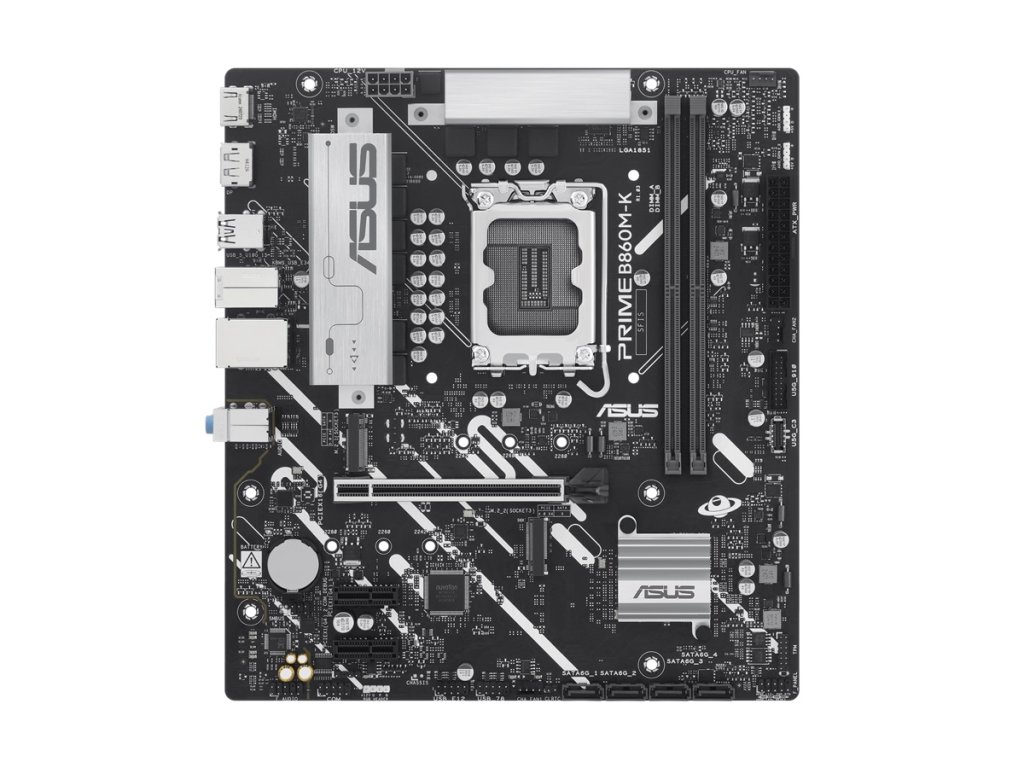

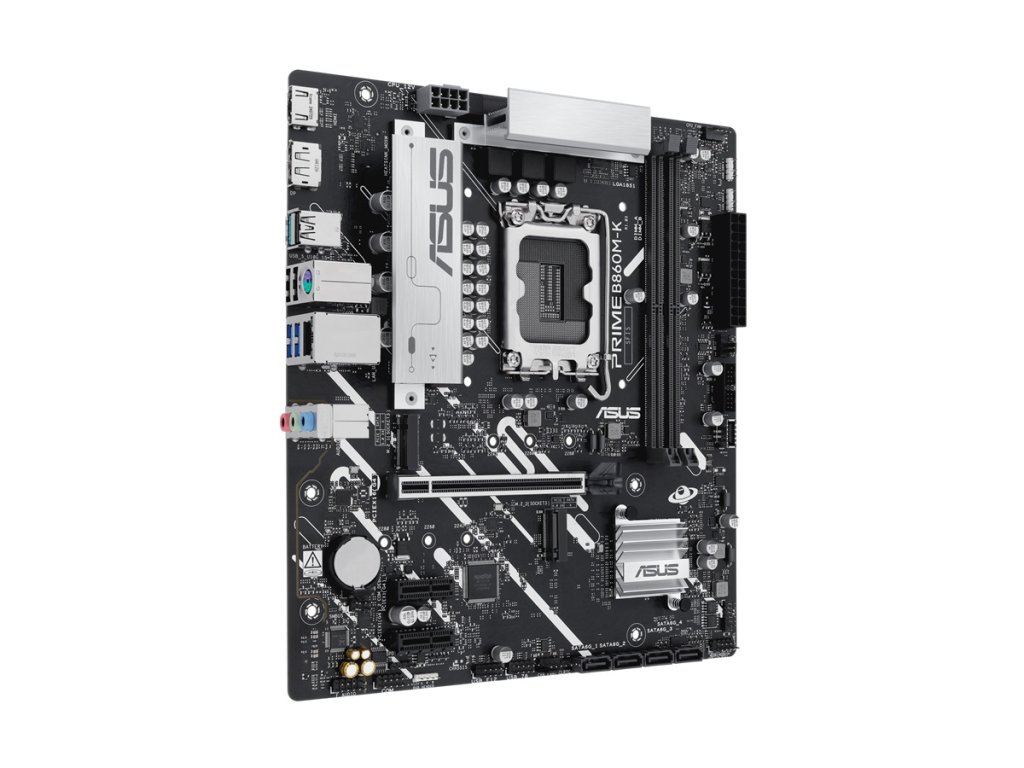

ASUS PRIME B860M

ASUS PRIME B860M-K * mATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dual channel memory architecture *DIMM Fit *Supports Intel® Extreme Memory Profile (XMP) memory module *ASUS Enhanced Memory Profile III(AEMP III) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozšiřující sloty: Intel® Core™ Ultra Processors(Series 2) *1 x PCIe 4.0 x16 slot Intel® B860 Chipset *2 x PCIe 4.0 x1 slots Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *ASUS LANGuard USB: Zadní USB (Total 7 ports) *1 x USB 10Gbps port (1 x Type-A) *2 x USB 5Gbps ports (2 x Type-A) *3 x USB 2.0 ports (3 x Type-A) Přední USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadního panelu: *1 x USB 10Gbps port (1 x Type-A) *2 x USB 5Gbps ports (2 x Type-A) *3 x USB 2.0 ports (3 x Type-A) *1 x DisplayPort *1 x HDMITM port *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Různé: *2 x Addressable Gen2 headers *1 x Aura RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front System Panel header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x I/O Shield *2 x M.2 anchors Dokumenty: *1 x Quick start guide
